HTML5 & WAI-ARIA Forms with jQuery Validation

HTML5 LogoW3C WAI-ARIA BadgejQuery Logo, write less do more

Paul J. Adam

Accessibility Evangelist at Deque Systems


Connecting labels to inputs is easy!

But what about:

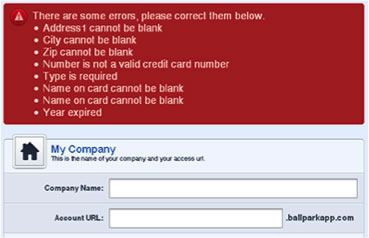

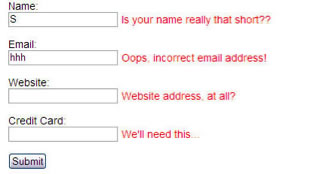

List of error messages at the top of a form.Inline error messages in red. Required fields marked with a star.

Most Forms Fail Accessibility

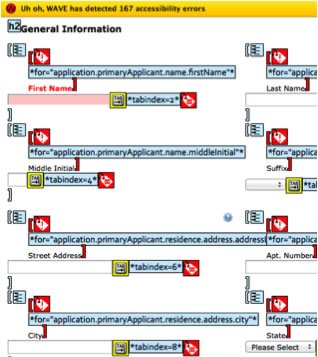

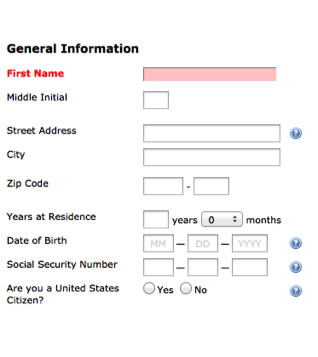

Form before WAVEForm after WAVE detected 167 accessibility errors.

Accessibility Considerations

a persons finger shown typing on iphone keyboard covering most of the visible buttons

Every. Single. Field. Needs. A. Label.

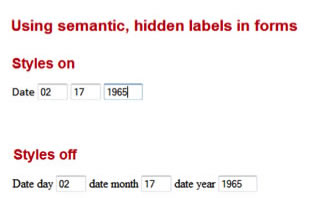

using semantic hidden labels in forms styles on and styles off on 3 digit date field<label for="fname">First Name</label><input name="fname" type="text" id="fname" size="50" />

Technique for WCAG 2.0 - Success Criteria 1.1.1 (Non-text Content), 1.3.1 (Info and Relationships), 3.3.2 (Labels or Instructions), and 4.1.2 (Name, Role, Value)

H44: Using label elements to associate text labels with form controls


<label for="fname">First Name *</label>
<input required type="text" name="fname" id="fname">


Do this for every single field! If you don’t want to see the label then hide it off screen with CSS.

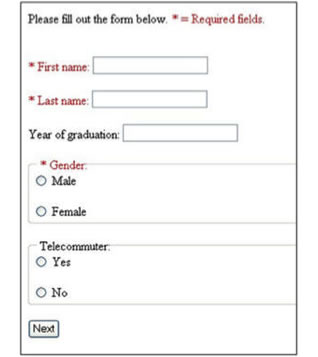

Radio Buttons & Checkboxes Need a Fieldset & Legend

favorite colors shown as legend, list of color checkboxes grouped and with labelsscreenshot of 2 radio groupings with legends, gender - male, female, telecommuter - yes, no


  <legend>Gender *</legend>
  <input type="radio" name="gender" value="male" id="male">
  <label for="male">Male</label>
  <input type="radio" name="gender" value="female" id="female">
  <label for="female">Female</label>


Gender *

Technique for WCAG 2.0 - Success Criteria 1.3.1 (Info and Relationships) and 3.3.2 (Labels or Instructions)

H71: Providing a description for groups of form controls using fieldset and legend elements

Are Input Formats Spoken?

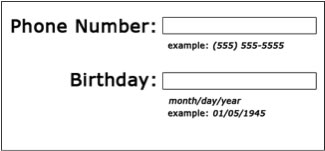

Form showing correct format for phone number and birth day.form showing password field instructions, error messages, too short, needs a lower-case letter, needs a number


<label for="bday">Birthday * MM/DD/YYYY</label>
<input type="text" name="bday" id="bday">


Technique for WCAG 2.0 - Success Criteria 3.3.2 (Labels or Instructions) and 3.3.5 (Help)

G89: Providing expected data format and example

Required Fields, Error Messages, & Keyboard Focus

Required Fields

No one enjoys filling out forms! If you want to get useful data and not scare your users away then only require the least amount of fields as is necessary.

Indicate the field is required by placing a red * in the label or the text (required).

Technique for WCAG 2.0 - Success Criterion 3.3.2 (Labels or Instructions)

H90: Indicating required form controls using label or legend

Error Messages

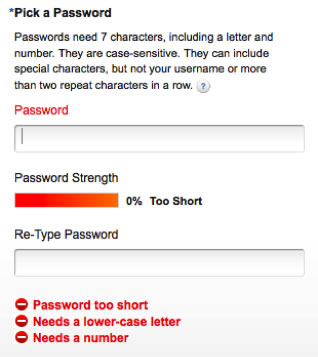

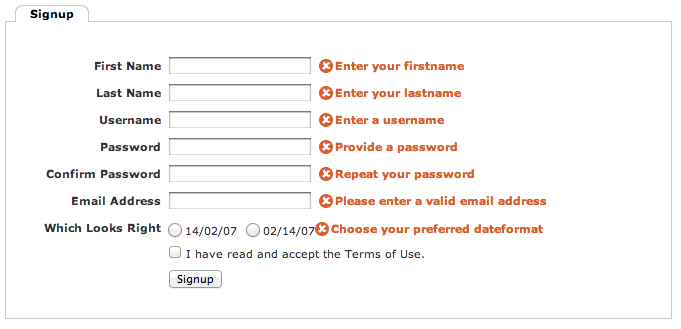

Example of a signup form with inline error messages placed to the right of the labels.

Rage Guy MemeHelp users out by providing useful error messages and suggestions to correct them. Placing the error in a label will cause a screen reader to speak each error as the user tabs through the form fields.

Keyboard Focus

One of the biggest failures with forms is not sending keyboard focus to the field with an error or the list of error messages. Assistive Technology users will have no idea there’s something wrong if the screen reader goes blank or their magnifier does not move focus to the error.

When nothing happens after pressing the submit button they will assume your form is broken.

Techniques for WCAG 2.0 - Success Criteria 3.3.1 (Error Identification), 3.3.2 (Labels or Instructions), 3.3.3 (Error Suggestion), and 3.3.4 (Error Prevention (Legal, Financial, Data))


HTML5 Validation

Now that you’ve got the basics out of the way, adding HTML5 validation and usability enhancements is a piece of cake!

Required Attribute

With the HTML5 required attribute and HTML5 input types you can put the responsibility of accessible form validation on the browser developer.


<label for="lname">Last Name *</label>
<input type="text" name="lname" id="lname" required> <input type="checkbox" name="tos" id="tos" required>
<label for="tos">* I agree to terms of service.</label>

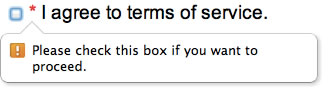

Screenshots of Different Input Types with the Required Attribute in Action on Mac OS X Lion
Browser Text Checkbox Radio
Chrome First Name * textbox focused Popover ! Please fill out this field. Checkbox focused * I agree to terms of service. Popover ! Please check this box if you want to proceed. Gender * fieldset legend Male radio button focused Popover ! Please select one of these options. Female radio button.
Firefox First Name * textbox red border focused Popover Please fill out this field. Checkbox focused red border * I agree to terms of service. Popover Please check this box if you want to proceed. Gender * fieldset legend Male radio button red border focused Popover Please select one of these options. Female radio button red border.

Of course the required attribute does not work on all browsers, Safari and Mobile Safari being the two where I miss support the most. You can read more about HTML5 browser support at The Current State of HTML5 Forms - The required Attribute by Chris Coyier (@chriscoyier) of CSS-Tricks fame. That resource is a bit out of date as support has improved in many browsers.

CSS for HTML5 validation

Control the visual presentation for a variety of states on your HTML5 inputs. BE CAREFUL WITH COLOR CONTRAST!






HTML5 Form Validation with Style | Web Builder Zone

Custom HTML5 Validation Error Messages

HTML5 Form Validation | Stephen Walther
<input required title="First Name is Required!" x-moz-errormessage="First Name is Required!" />

Do we really need the title attribute here? Not liking this because NVDA/FF reads both title and moz error msg but it is the least amount of code.

<input required oninvalid="this.setCustomValidity('HTML5 oninvalid event with setCustomValidity')" onchange="try{setCustomValidity('')}catch(e){}">

Boolean Attributes


Understanding HTML5 intelligent forms – Part 1: New input elements | Adobe Developer Connection
Understanding HTML5 intelligent forms – Part 2: New form attributes | Adobe Developer Connection

<input autocomplete="off"> <input spellcheck="false">

HTML5 Input Types


HTML5 input types greatly enhance the usability and accessibility of forms on mobile devices. In iOS, the iPhone, iPad, & iPod Touch platform, most input types will display a keyboard enhanced for that data format. It is very rare to see forms in the wild take advantage of these simple usability enhancements. By default input type=text displays the normal alphabetic keyboard. If you need to type numbers, the @ symbol in an email address, or the .com for a URL extra taps are required.

Comparison of Input Types and Displayed Keyboard on the iPhone
Type type=text type=email type=tel
<label for="text">Text:</label>
<input type="text" name="text"
<label for="email">Email:</label>
<input type="email" name="email" id="email" />
<label for="tel">Tel:</label>
<input type="tel" name="tel"
 id="tel" />

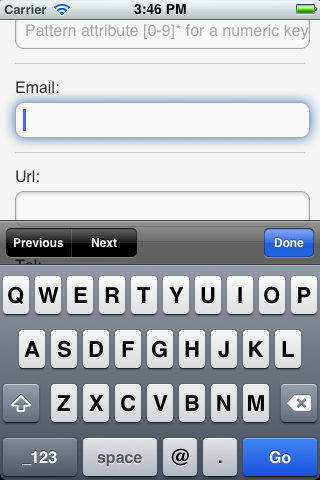

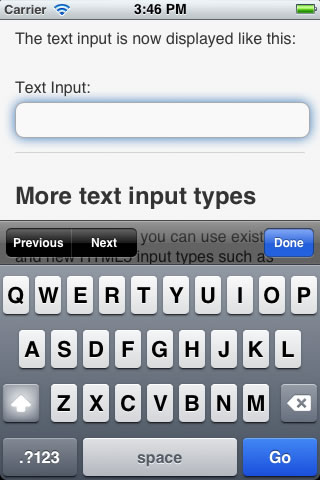

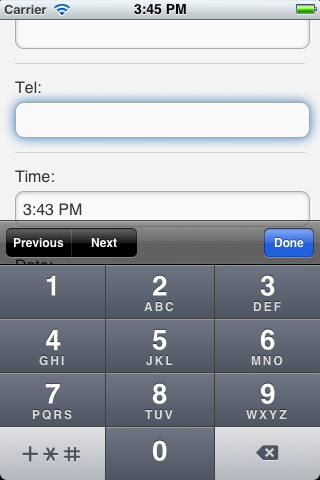

Screenshot Default keyboard displays alphabet characters with first letter capitalized by default. Email keyboard displays alphabet with additional @ and . symbol. Tel keyboard displays 10-digit numeric phone keypad with +, *, and # key.

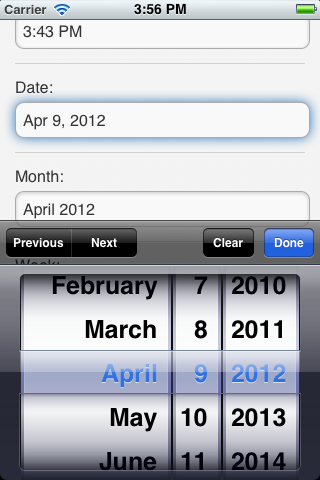

input type=date on iPad & iPhone

<label for="date">Date:</label>
<input type="date" name="date" id="date" />

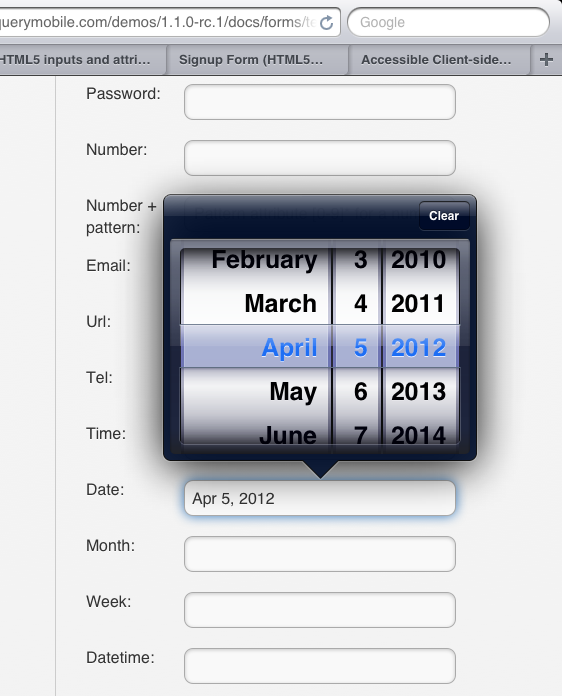

Date type displays a date spinner popover on the iPad. Date spinner control replaces standard keyboard on iPhone.

Because these different keyboards and spinner controls are native to iOS they're accessible by default. Apple's done all the work for you.

Pattern Attribute

<label for="zip">Zip Code 5 Digits</label>
<input type="number" pattern="[0-9]*" maxlength="5" min="0" name="zip" id="zip">

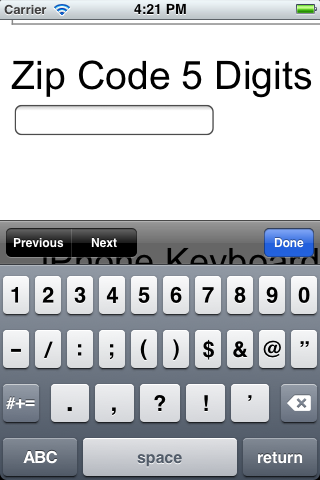

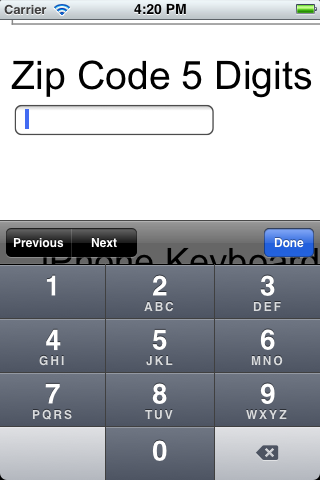

iPhone Keyboard Comparison Screenshots with Pattern Attribute
input type=number input type=number pattern="[0-9]*"
The number type without a pattern attribute displays a keyboard with many small number and symbol buttons. The number type with a pattern attribute displays the 10-digit keypad with very large buttons similar to the tel keyboard.

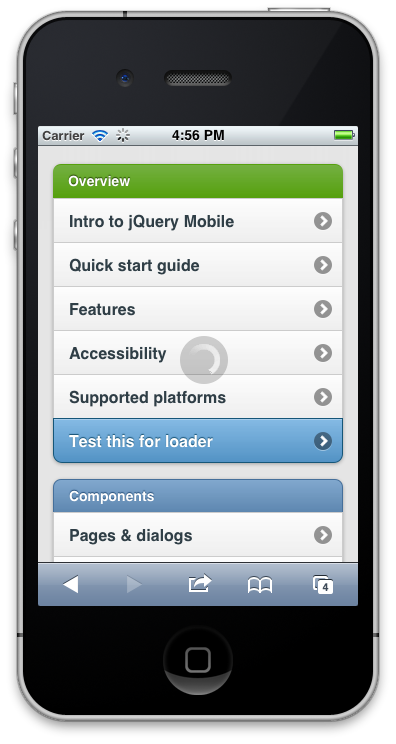

Happy Guy Thumbs Up MemeExample of jQuery Mobile on the iPhone.Using the pattern attribute, pattern="[0-9]*", with the number input type will display the 10-digit numeric keypad similar to the tel keypad. This is much more usable than the standard number keyboard which shows a lot of keys that are not needed for simple numeric input like a Zip Code. We have fat fingers and mobile keyboards have tiny buttons. Anything you can do to increase the tap target size of a button really helps out! has Regular Expression patterns that can be used to validate complex input types. These are live and can be tested in supported browsers.

You can visit HTML5 inputs and attribute support in a browser to test its support for HTML5 forms and click through all the input types. Another great page to test support for HTML5 form attributes is the jQuery Mobile - Text inputs Docs. I love the jQuery Mobile project as it does two things I'm passionate about, mobile & accessibility, very well!

Input Types Add More Stringent Validation

By adding an input type=email the browser will ask for more specific input formatting to make sure the user actually types an email address in the format

Chrome screenshot Email * text field focused asdf Popover ! Please enter an email address.

If we add the required attribute to input type=number Firefox will ask for numeric data that matches the specified pattern attribute.

Firefox screenshot Zip Code text field focused asdfa Popover Please match the requested format.


Simple Mobile & Screen Magnification Usability & Accessibility Enhancements

Place Label Above Input

By placing the label directly above the input you improve the experience for mobile and screen magnification users. When focus is in the input the label will no longer be cut off like in the below example of the Gmail sign up form where the label is placed to the left but cut off when viewed on an iPhone.

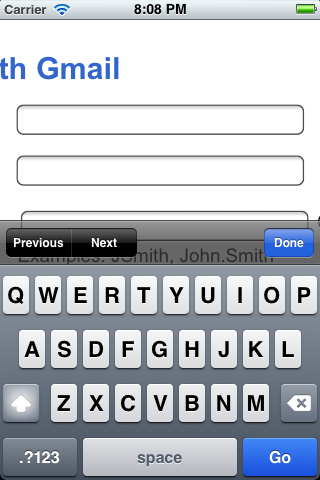

iPhone screenshot of gmail signup form with labels placed to the left. Labels are cut off when input's have focus due to iOS zooming in when the keyboard displays.

Position Formatting Instructions Below Input with CSS

Using CSS you can enclose formatting instructions in a span tag and position them directly under the input so they are still visible when zoomed in.

<p class="instructions-container">
  <label for="zip">Zip Code <span class="instructions">5 Digits</span></label>
  <input type="number" pattern="[0-9]*" maxlength="5" min="0" name="zip" id="zip">
.instructions {
top: 1.6em;
.instructions-container {
.instructions-container label {


Visually Hiding Labels Using CSS

You may want to visually hide some labels where the input might be obvious to most sighted users. We can use CSS positioning to do this. The code for this comes from the WebAIM article, CSS in Action: Invisible Content Just for Screen Reader Users.


<label for="areacode">Phone * <span class="hidden">Area Code</span></label>
<input required type="tel" name="areacode" id="areacode" maxlength="3">
<label for="threedigits" class="inline"> <span class="hidden">First Three Phone Digits</span> *</label>
<input required type="tel" name="threedigits" id="threedigits" maxlength="3">
<label for="fourdigits" class="inline"> <span class="hidden">Last Four Phone Digits</span> *</label>
<input required type="tel" name="fourdigits" id="fourdigits" maxlength="4">




- -

You can disable CSS and the labels will become visible.

HTML5 Validation Demo Form

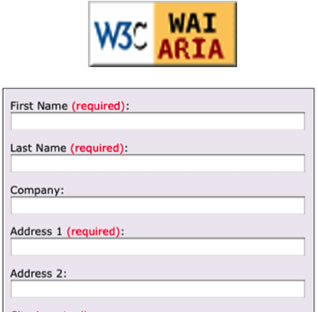

W3C WAI-ARIA badge & screenshot of form with the text (required) colored red and placed in the labels of the required fields.Happy face rage guy with tears of joy.

Limitations of ARIA

ARIA only works on some of the latest screen readers and browsers. It does not work with all AT (Assistive Technologies). There is no support for speech recognition software such as Dragon NaturallySpeaking. Window-Eyes and ZoomText have limited support.

Derek Featherstone (@feather) has an excellent blog post on A List Apart titled ARIA and Progressive Enhancement where he documents ARIA support on Window Eyes & ZoomText. There are also good ARIA coding techniques and live form examples.


Enhancing Forms with ARIA

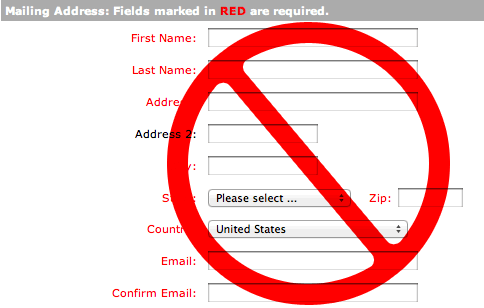

Screenshot of a form that only indicates required fields by coloring their labels red. A big red circle with a line through it is placed over the screenshot.Are you kidding me meme face

Sometimes developers use color alone to alert users that required fields are not filled. DON'T DO THIS! What you should do to indicate a required field is to place text in the label that says so. Many times you see a red * or the text (required) placed in the label. This is the recommended approach. Other recommendations involve creating a star graphic and placing it in the label with alt="Required". This works as well but it is buggy in OS X Lion where the alt attribute is not announced in a label.

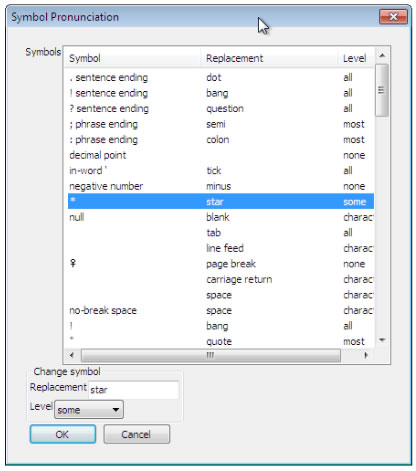

NVDA Symbol Pronunciation settings showing changing the * symbol who's replacement text is star to the level of some.By default NVDA will not speak an asterisk * as "star". VoiceOver & JAWS both say "star". NVDA users can adjust their Symbol Pronunciation settings to force * to be spoken by setting the Level to "some" but not all users are aware of this feature and will usually be running on default settings. By placing the aria-required="true" attribute on all required fields NVDA will now announce they are required at the default settings. VoiceOver and JAWS will speak the star and the required attribute.


The easiest enhancement is to add the aria-required="true" attribute to all required fields in your form.

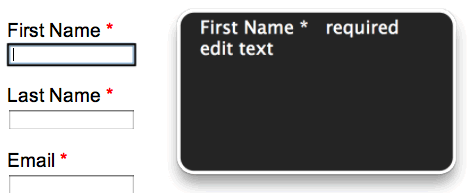

Below is a screenshot of the VoiceOver Caption Panel on OS X Lion which provides an excellent way to visualize ARIA/screen reader output if you're deaf or hard of hearing or don't want to annoy others in the room with your computer speaking everything out loud. I think it would be cool if iOS could do this as well!

Label reads: First Name *, VO output speaks: First Name * required edit text

Don't worry about having the HTML5 required attribute and the aria-required="true" attribute and causing repetition. All the screen readers I've tested only speak required once. Here aria-required is your fallback for browsers who do not support HTML5 like Internet Explorer. This way screen readers which support ARIA will speak the ARIA attribute when used with IE and ignore the HTML5 attribute.

ARIA Techniques for WCAG 2.0

ARIA2: Identifying required fields with the aria-required property

WAI-ARIA 1.0 Authoring Practices

Use aria-invalid and aria-required To Improve Access to Forms

Other ARIAs for Consideration

aria-invalid="true" role="alert"

Marco Zehe (@MarcoInEnglish) from Mozilla wrote a post called Easy ARIA tip #3: aria-invalid and role "alert" which recommends setting aria-invalid="true" on fields with errors and creating a div with a role="alert" to hold the error messages.


Rage guy comic meme character with goofy smile and teeth showing.How do assistive technology users navigate forms? Do they tab through the inputs like I do to quickly fill the fields out with the keyboard? Do they use their arrow keys to go down through the fields and the text between the fields? Or do they use other screen reader shortcuts like the F key for form fields?

In most of my experience testing forms and receiving feedback from others in the industry, tabbing through forms is the most popular interaction method. This is why I recommend placing all instructions and errors in the labels. As the user tabs through they would hear all instructions spoken by a screen reader.

What if the instructions to complete a form field are just really long and you'd rather not include them all in the field's label? Well if the user's AT & Browser have support for ARIA you could instead include those long instructions above or below the field and then point to them with the aria-describedby attribute causing the supported screen reader to speak those instructions after the label.

ARIA Techniques for WCAG 2.0

ARIA1: Using the aria-describedby property to provide a descriptive label for input controls


If you are using explicit labels and aria-describedby then there should not be many reasons to need to use aria-labelledby on form fields. Marco Zehe has a good example of where aria-labelledby could be useful on forms. Easy ARIA tip #2: aria-labelledby and aria-describedby. The example illustrates a problem where a text input field might be placed in the middle of a sentence but it needs to be labelled by the first part of the sentence, the input's value itself, and the final part of the sentence.

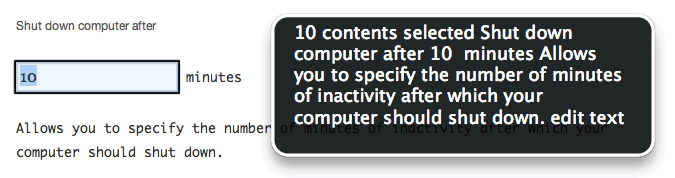

VoiceOver output of Marco's aria-labelledby example. VO reads: 10 contents selected Shutdown computer after 10 minutes Allows you to specify the number of minutes of inactivity after which your computer should shut down. edit text


aria-label is meant to be used in cases where a text label is not visible on the screen and a visual tooltip is not desired like when using the title attribute.

In the second version of the ARIA demo form I've used the aria-describedby attribute as a replacement for placing input formatting instructions in the label and positioning it below the form field with CSS. Instead of using visually hidden labels with CSS I used the aria-label attribute to label inputs that do not need a visual label like when a phone number is split into three fields.

Final Thoughts on These Other ARIAs

In these other ARIAs for consideration I've only been talking about their usage on forms, however, they are many times meant to be used to label and describe "desktop-like" HTML widgets that have been built using non-form tags such as divs and list tags. For more information read: Using the aria-labelledby attribute & Using the aria-describedby attribute from the Mozilla Developer Network.

Demo Form with HTML5 & WAI-ARIA Validation

Demo Form 2 with HTML5 & WAI-ARIA Validation

jQuery Validation Plugin

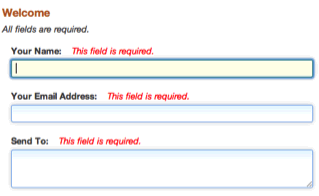

jQuery Validation Plugin in action on a simple contact form.Old browsers? Old AT? JavaScript to the rescue! In the last part of our series on accessible form validation and usability enhancements we're adding the jQuery Validation plugin to make sure our form is universally accessible on all devices that support JavaScript including the dreaded IE6.jQuery Logo - Write Less, Do More

HTML5 and ARIA Have Limitations - JavaScript Does Not!

Sure JavaScript has some limitations but really there are none when you code it with accessibility in mind. It works on pretty much all browsers and mobile devices. No one really disables JavaScript unless they're a security nerd. If you want to handle a situation where JavaScript is turned off and protect your database from SQL injection attacks then you have to validate form input on the server side as well. Server-side validation can be considered the lowest layer of accessible form validation and will work in any browser including feature phones.

Adding the jQuery Validation Plugin

jQuery is the dominant JavaScript framework on the web and can be declared the winner of the JS framework wars of the past years. jQuery's motto is "Write Less, Do More". Minimalism and accessibility go very well together!

It's very simple to add jQuery Validation to any HTML form. Link to jQuery, we're using a content delivery network here so we don't have to download the JavaScript file. Then link to the validation plugin. Then tell jQuery to run the validation plugin on your form with the id attribute you want to validate. This will happen after the document is finished loading. Add this code to the <head>.

The plugin picks up on our inputs with the HTML5 required attribute and by default will instead do its own JavaScript validation and not use HTML5. This is a problem. We want to run HTML5 validation in browsers that support it and only run JavaScript validation in browers that don't support HTML5.

jQuery Validation Default Settings

Rage Guy meh faceThere are some issues with the default settings. It stops the native HTML5 validation. The other big accessibility issue is that by default the error messages are placed in a second <label>. So there are two labels pointing to one input. This is a problem for some screen readers. VoiceOver will not announce the second label when the user tabs through the form. Steve Faulkner (@stevefaulkner) wrote a recent blog post titled, Notes on applying multiple labels for a control using the label element, and created a test case, multiple labels for a control using the label element, where you can see where multiple labels fail in certain AT. aria-labelledby is a better solution than using multiple labels.

So we have two problems so far with default settings. HTML5 validation is disabled and two labels are pointing to one input. The third problem is that the error message is being placed below the input. So we need to move that into the original label and use CSS to position it where we choose.

Tweaking jQuery Validation

Options for the validate() method

There are many options to change the default settings of the validation plugin. We want to change the errorPlacement and errorElement. We also want to remove the novalidate attribute that is applied to our form by default.

Change the code in the <head> to this:

To change the errorPlacement I found some code on Stack Overflow to select the associated label element of an input field and append the error message to that. Then I changed the errorElement to be an <em> rather than another <label>. And then used jQuery to select the form on the page and remove the novalidate attribute.

Now this is the behavior we want. Modern browsers like Chrome and Firefox will first run HTML5 validation and then other browsers with less HTML5 support like Safari on Mac an iOS will use jQuery Validation.

It even works in IE6! Check out the two demo links in different browsers to see the differences.

IE6: The kryptonite of web developers, web developer is superman, then apply IE6 the kryptonite and web developer turns into a really dorky looking guy with glasses and a fake tuxedo shirt after compatibility work with IE6

Demo Form with HTML5, WAI-ARIA, & jQuery Validation (Default Settings)

Demo Form with HTML5, WAI-ARIA, & jQuery Validation (Tweaked Settings)


bookcover for Steve Krug's usability book, don't make me think

Forms Can be Painful & Inaccessible!

rage guy with hands in the air crying

Let’s change this problem with data entry on the web!

I first developed this talk for CSUN 2012. You can download that original PowerPoint presentation at HTML5 & WAI-ARIA Forms with jQuery Validation.

I also wrote a 3-part blog series on the topic which I then encorporated into this presentation.

  1. Accessible Client-side Form Validation with HTML5
  2. Accessible Client-side Form Validation with HTML5 & WAI-ARIA
  3. Accessible Client-side Form Validation with HTML5, WAI-ARIA, & the jQuery Validation Plugin

Go Forth and Be Accessible!!!

Rage guy with tears of joy.



This presentation and slideshow template is always evolving, most ALT text should be added and correct. Please contact me if there are any issues.

You can use the left and right arrow keys or page up/down to navigate between slides. If you're using a screen reader you may need to use the pass through key first then hit arrow keys. Page up/down works with screen readers enabled without the need for a pass through key.
